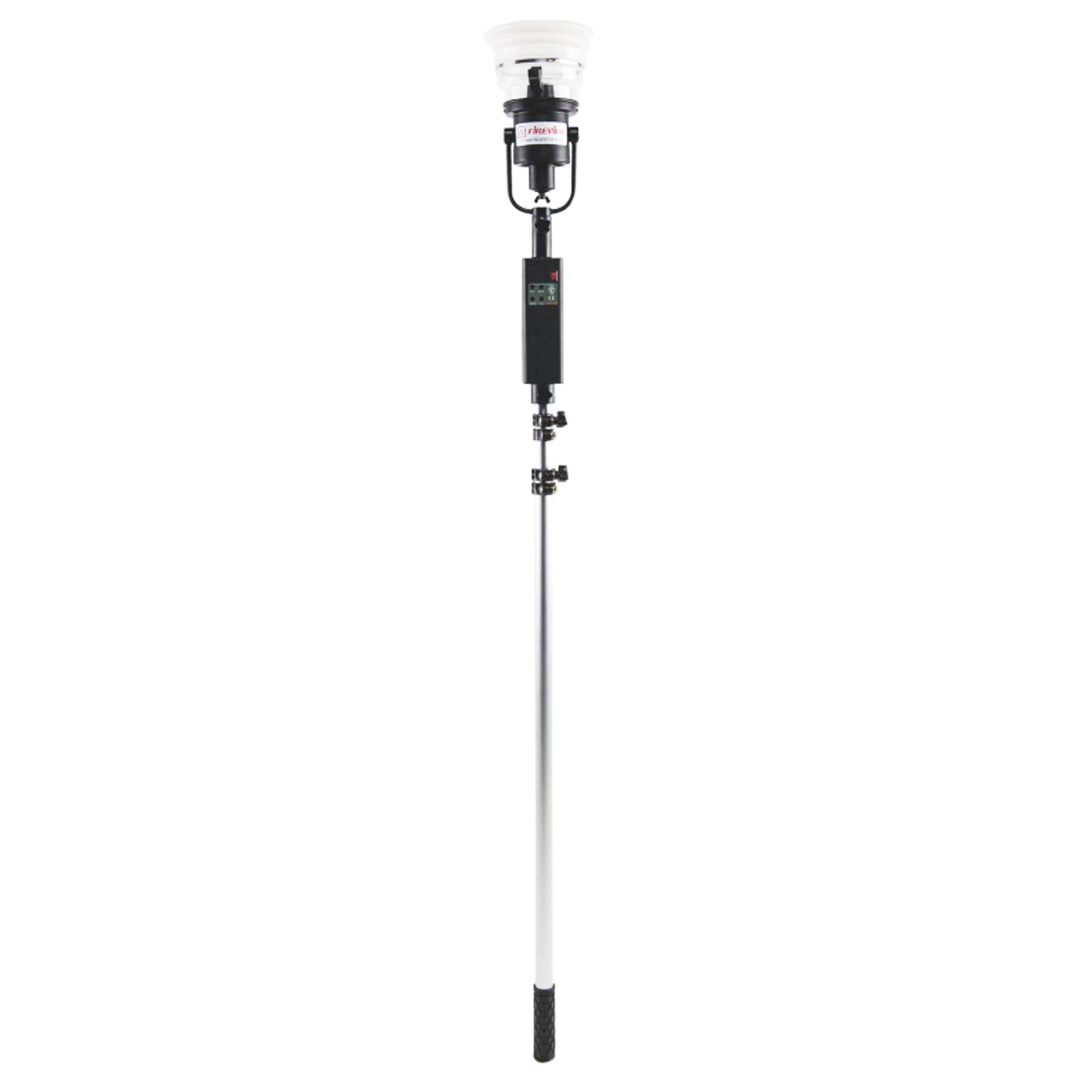

PORTABLE FIRE DETECTOR TESTER

The FIREVIEW is a professional all-in-one portable fire detector tester designed for fast, reliable, and efficient testing of smoke and heat detectors from floor level—eliminating the need for ladders or scaffolding in most situations.

Key Features

• All-in-One Testing – Tests both photoelectric/ionization smoke detectors and fixed-temperature/rate-of-rise heat detectors with a single device.
• Clean Smoke Generation – Uses dedicated non-toxic, non-conductive, UL-certified smoke oil instead of aerosol sprays. One 100 ml bottle supports approximately 1,000+ smoke detector tests with no residue left in the detector chamber.
• Built-in Smoke Extraction Fan – Clears residual smoke after testing for cleaner, more accurate results.
• Heat Testing – Generates controlled heat (up to approx. 90°C) for reliable activation of heat detectors.
• Wireless Remote Operation – Convenient key-fob / remote control operation for easy one-person testing.
• Rechargeable Power – 14.8V Li-ion battery provides approximately 150–200 heat tests or 300 smoke tests per full charge. Charge time is about 5 hours.
• Extendable Reach – Standard telescopic pole extends from ~1.3 m to 3 m. Optional 6 m and 10 m extension poles available for high ceilings.
• Detector Removal Tools – Compatible removal tools allow easy detector removal and replacement at height.
• Optional Flame Detector Head – Simply swap the head unit to test IR and UV flame detectors (universal design works across major manufacturers).

FIREVIEW PORTABLE FIRE DETECTOR TESTER USE MANUAL

Ideal For

Fire protection technicians, building maintenance teams, inspection companies, and facility managers who need a durable, low-maintenance, residue-free solution for routine detector testing and service.

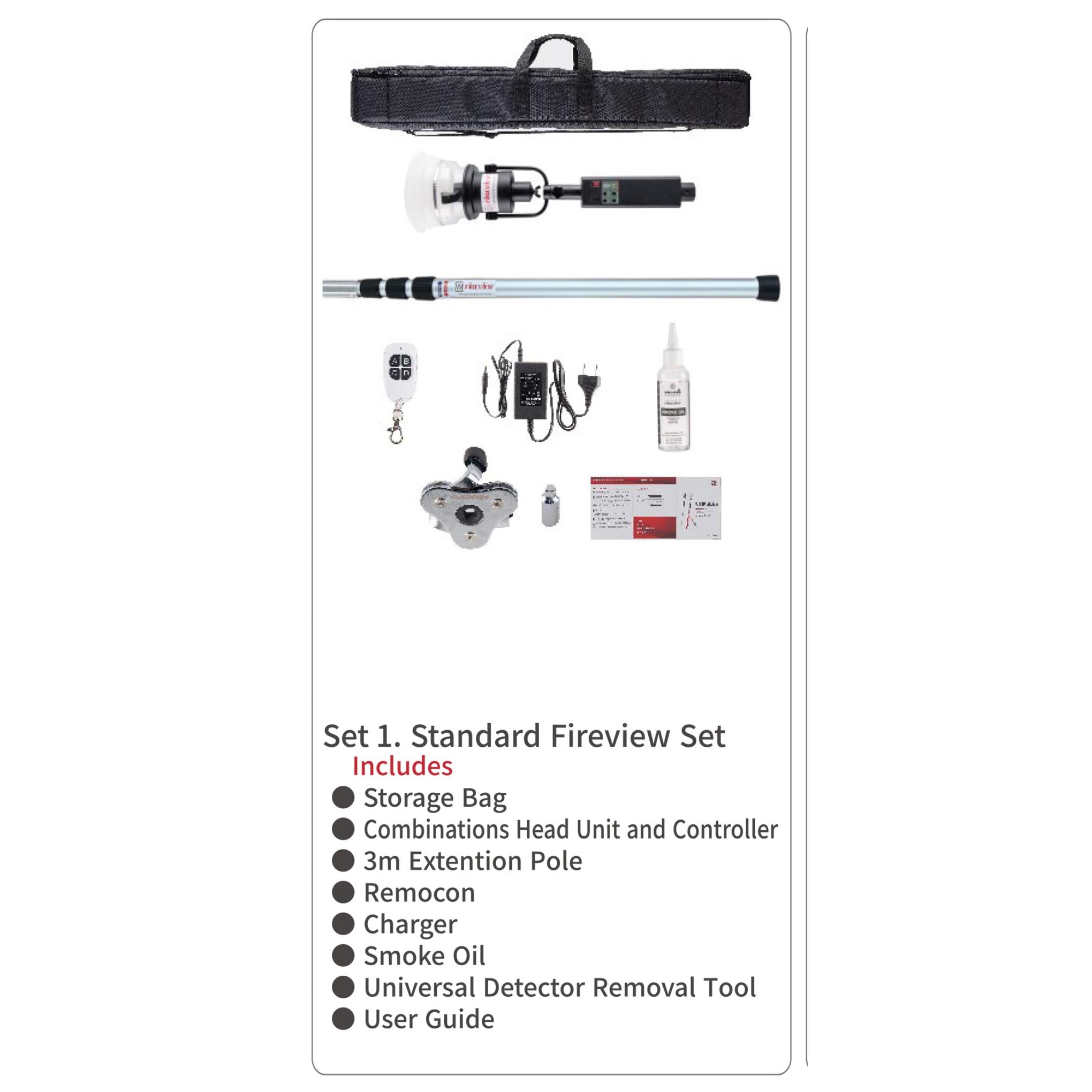

Lightweight aluminum construction, LED status indicators, and a complete kit (controller, test head, pole, charger, smoke oil, remotes, and carrying bag) make the FIREVIEW a practical professional tool for everyday use.

Manufacturer: Wonwoo EF Engineering
