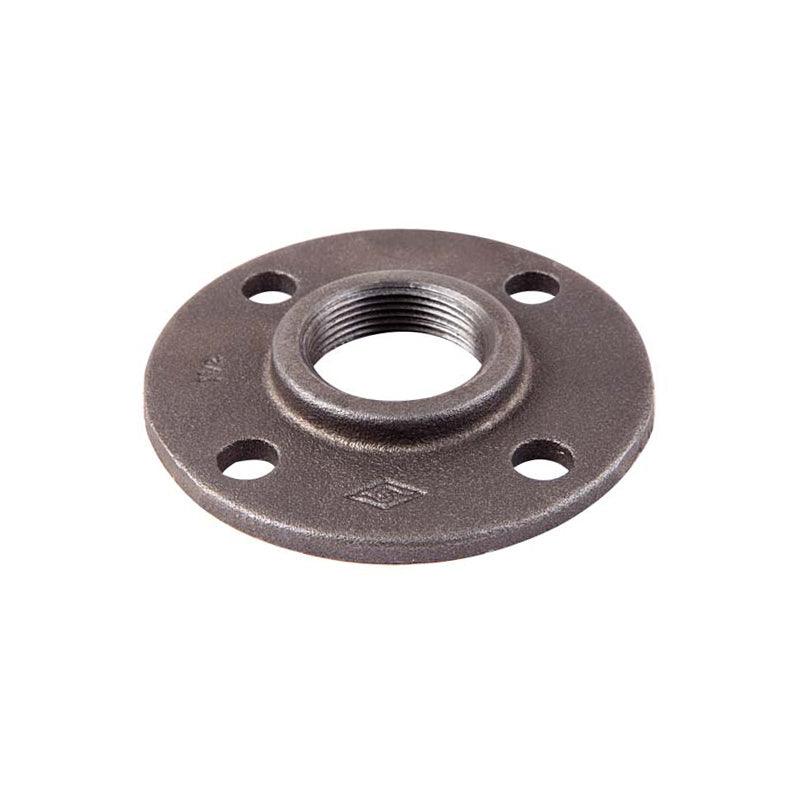

BLACK FLANGE, UL/FM

Manufacture: Jinan Meide Casting Co., Ltd.

Brand:  MECH

Dimension:  1/4" - 4"

Design Standard:  ENTERPRISE STANDARD

Connection Standard:  ANSI/ASME B 1.20.1

Material: The chemical composition of the cupola malleable iron used to create this fitting meet the mechanical property requirements (ASTM A197/A197M)

Standards: Used for water or gas supply as well as for sewage and wastewater applications (ASME B16.3), Applied a thin layer of zinc on the exterior to prevent corrosion (B16.14)

Surface Treatment: Black

Threads: Tapered Angle is 1° 47', truncation of roots and crests is flat, Thread Angle is 60°, pitch is measured in threads per inch (ASME B1.20.1)

Connection: Female X Flange with (4) Bolt Holes
