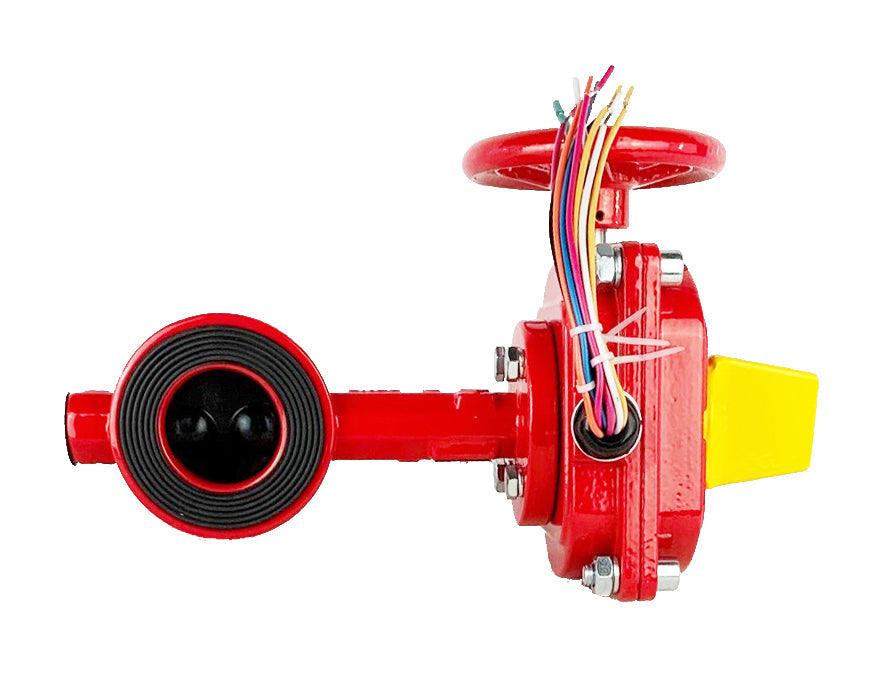

The wafer butterfly valve is simple, with compact and 90° slewing crane structure, it is mainly used for a low-pressure pipeline with a tamper switch.

Manufacturer:  Jinan Meide Casting Co., Ltd.

Brand:   MECH

Model Number: XD371X

Materials:  Housing:  Ductile Cast Iron, Disc:  EPDM

Design Standard:  MSS SP-67

Valve Type: Butterfly

Type of Connection: Wafer Thin per connection standard ASME B16.42 CL 150

Working Pressure:  300 psi

Operating Temperature Range:   32°F (0°C) - 176°F (80°C)

Electrical Connection: Yes

Tamper Switch: Yes

Condition:  Normally open (yellow knob)

Available Sizes:  2", 2-1/2", 3", 4", 6", 8", 10", 12"

Certifications:  UL Listed, FM Approved
