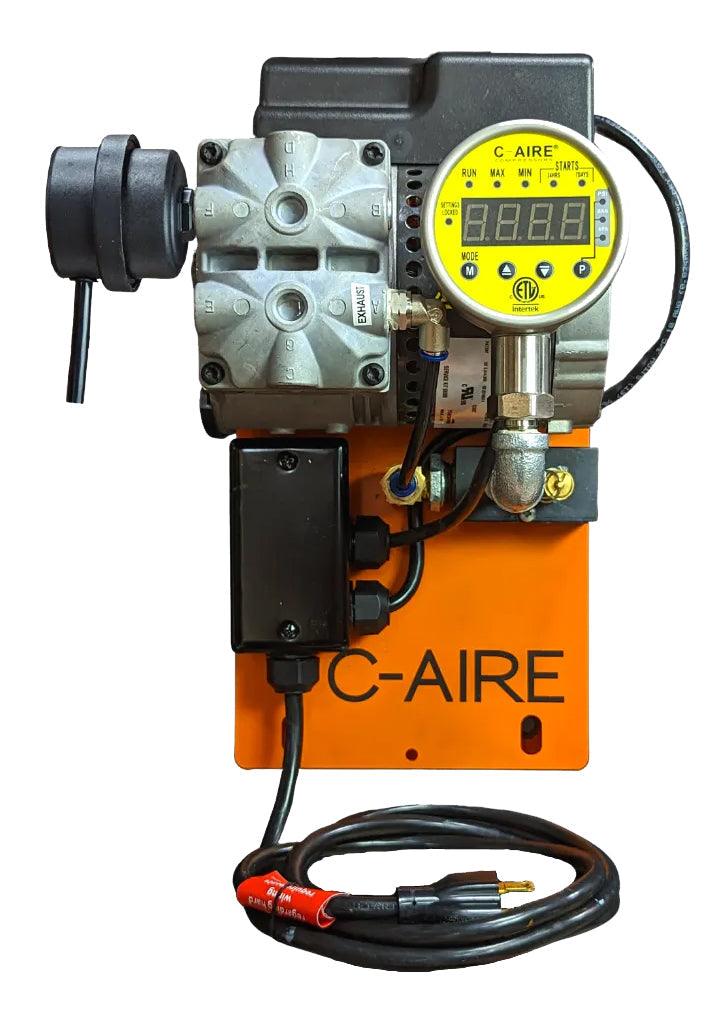

.5 HP S164 OIL-FREE RISER MOUNT FIRE PROTECTION COMPRESSOR

• 0.5 Horse Power
• 2.21 CFM @ 10 PSI
• Single Phase
• 115 Volts
• Wall Mount or Riser Mount
• Standard pressure (40 psi): Fills a 182-gallon dry pipe system in 30 minutes
• Low pressure (18 psi): Fills a 405-gallon dry pipe system in 30 minutes
• Pre-action (10 psi): Fills a 729-gallon dry pipe system in 30 minutes
• Adjustable 5-55 PSI / Factory Set at 10-20 PSI / Minimum Differential 5 PSI
• 1/2" NPT Outlet
• 10" x 9.5" x 14" (L x D x H)
• 22 lbs Shipping Weight
• ETL Listed for Fire Protection (UL Standard 1450 & CSA Standard C22.2 NO. 68)


STANDARD FEATURES

• Digital AMD Gen-3 with Leak Detection™️ – Learn More

• Appropriate for single-valve systems

• Whisper quiet – 54 dB

• Easy to install

• Extremely compact size

• Low vibration

• Oil-free and low maintenance

• Includes mounting bracket, 30″ flex hose, and 4″ hose clamps
