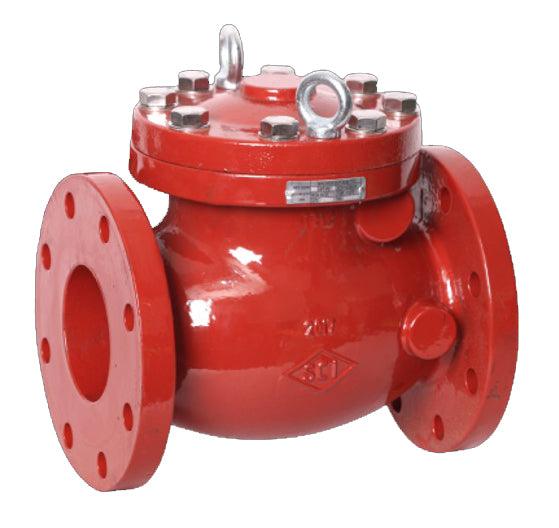

MECH CHECK VALVE, Swing, Flange x Flange, UL/FM

Manufacture: Jinan Meide Casting Co., Ltd.

Brand:  MECH

Materials:

1. Valve body: Ductile Iron ASTM A536, 65-45-12
2. Seat Ring: Bronze ASTM B62 (Pressed Fit)
3. Disc: Ductile Iron ASTM A536, 65-45-12
4. Bonnet: Ductile Iron ASTM A536, 65-45-12
5. Hinge Pin: AISI 304
6. Epoxy Coating Color: RAL3000

Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550

Rubber:  EPDM and NBR available

Design Standard:  AWWA C508

Connection Ends:  Flange to ASME B16.1 CL125

Working Pressure: 300PSI

Temperature Range: 0℃ - 80℃

Size Available: 2" - 12"

Certifications: FM,UL,CUL,LPCB,NSF/ANSI 61,NSF/ANSI 372,CE

This valve features a durable red epoxy finish required for most fire-prevention installations and recognized across NFPA-compliant systems.

Designed specifically for fire prevention systems, this UL/FM certified valve provides reliable flow control for commercial sprinkler and riser applications.
