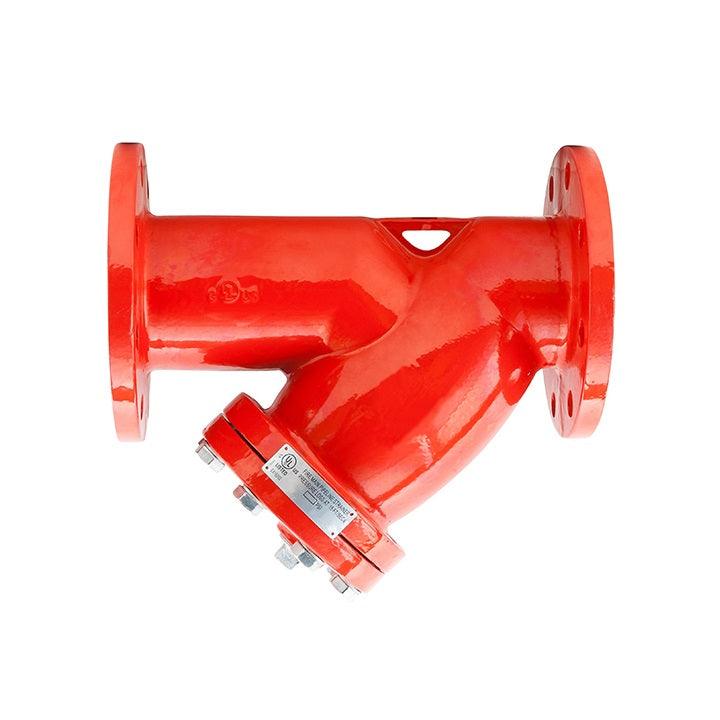

WYE STRAINER, Flanged

Manufacturer: Jinan Meide Casting Co., Ltd.

Brand: Mech

Type: WYE-Strainer w/ NPT Blow-off connection

Design Standard: ASME B16.42

Available Sizes: 2" - 12"

Connection Type: Flanged

Connection Standard: ASME B16.1 CLASS 125，ASME B16.42 CLASS 150

Materials:

1. Valve Body:  Ductile Iron ASTM A536, 65-45-12
2.  Screen: AISI 304
3. Gasket: Graphite + Acanthopore Plate
4. Bonnet: Ductile Iron ASTM A536, 65-45-12
5. Plug: Malleable Iron Galvanized
6. Epoxy Coating Color: RAL3000

Working Pressure: 300 WOG

Working Temperature: 32°F (0°C) - 176°F (80°C)

Standards: UL, CUL, CE, UKCA

Applications: Fire lines, risers, sprinkler systems
