DRY PIPE VALVE WATER MOTOR GONG

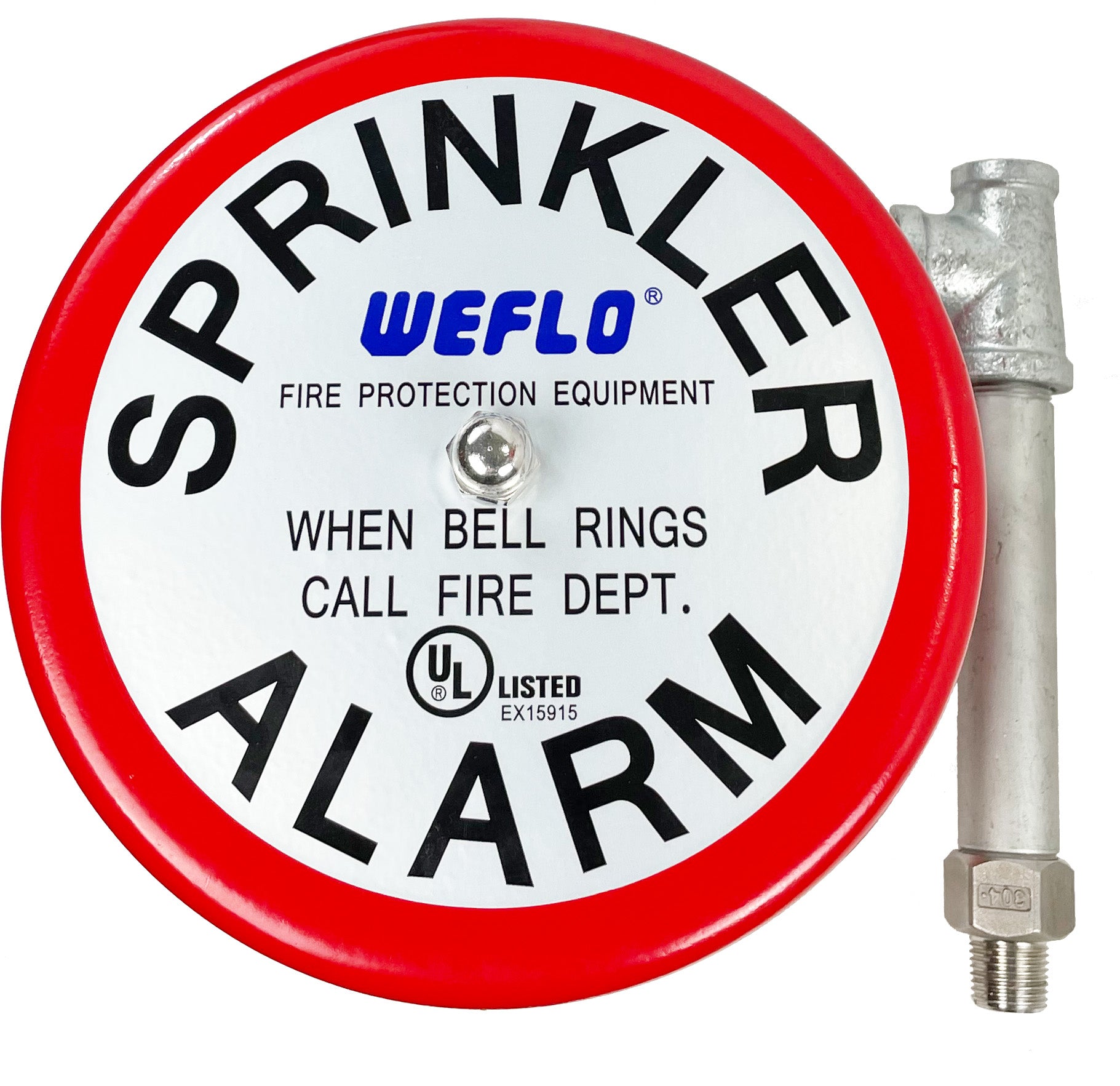

This UL/FM approved fire sprinkler water motor alarm (also called a sprinkler alarm gong or water motor gong bell) provides a reliable, continuous 90 dB audible alarm when fire sprinkler systems are activated. Designed for use in both wet pipe and dry pipe fire sprinkler systems, this weatherproof water motor gong ensures dependable performance for commercial, industrial, and residential fire protection.

Key Features

• UL/FM Approved Fire Sprinkler Water Motor Alarm

• For indoor and outdoor fire sprinkler systems

• Self-contained, line-pressure operated gong bell

• Produces a loud, continuous 90 dB fire alarm sound

• Heavy-duty, weatherproof and corrosion-resistant housing

• Compatible with wet pipe, dry pipe, and deluge sprinkler systems

Technical Specifications

• Connections:

  • Inlet: ¾” NPT

  • Outlet drain: 1” NPT

• Working Pressure: 0.5 to 20.7 barg / 300 PSI

• Working Temperature: +1 °C to +87 °C

• Weight: 2.27 kg

Operation
When a fire sprinkler alarm valve is activated, water flows through the valve trim and discharges into a strainer before entering the motor inlet. The nozzle directs the water stream to the impeller, rotating the impeller and drive shaft. This action drives the striker arm, creating a continuous gong alarm signal. Discharged water exits through a 1” (25 mm) drain outlet at the base of the housing and must be piped to atmosphere or an open drain.

Applications

• UL/FM fire sprinkler systems

• Commercial fire protection systems

• Industrial and warehouse fire sprinkler monitoring

• Residential fire sprinkler installations
