Manufacture: MECH

Material: Bronze Alloy(ASTM B584)

Union Dimensions: Bronze threaded pipe connections and solder-joint tube connections (A-A-59617)

Threads: Tapered angle is 1° 47', truncation of roots and crests are flat, Thread angle is 60° (ASME B1.20.1), Tapered angle is 1° 47', truncation of roots and crests is rounded, Thread angle is 55°, pitch is measured in threads per inch (ISO 7-1)

Size Available: 1/8" - 4"

Standards: Bronze Alloy threaded pipe fitting used in steam, water, gas, oil and air applications (ASME B16.15 Classes 125 250)

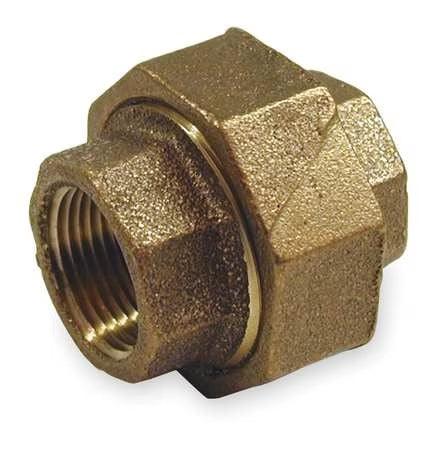

This Bronze Union pipe fitting is used to be easily detached for repairs to the system. It is designed for easy assembly or disassembly of the pipe structure.

*The photo is for representation purposes only and may not be a photo of product being purchased.
