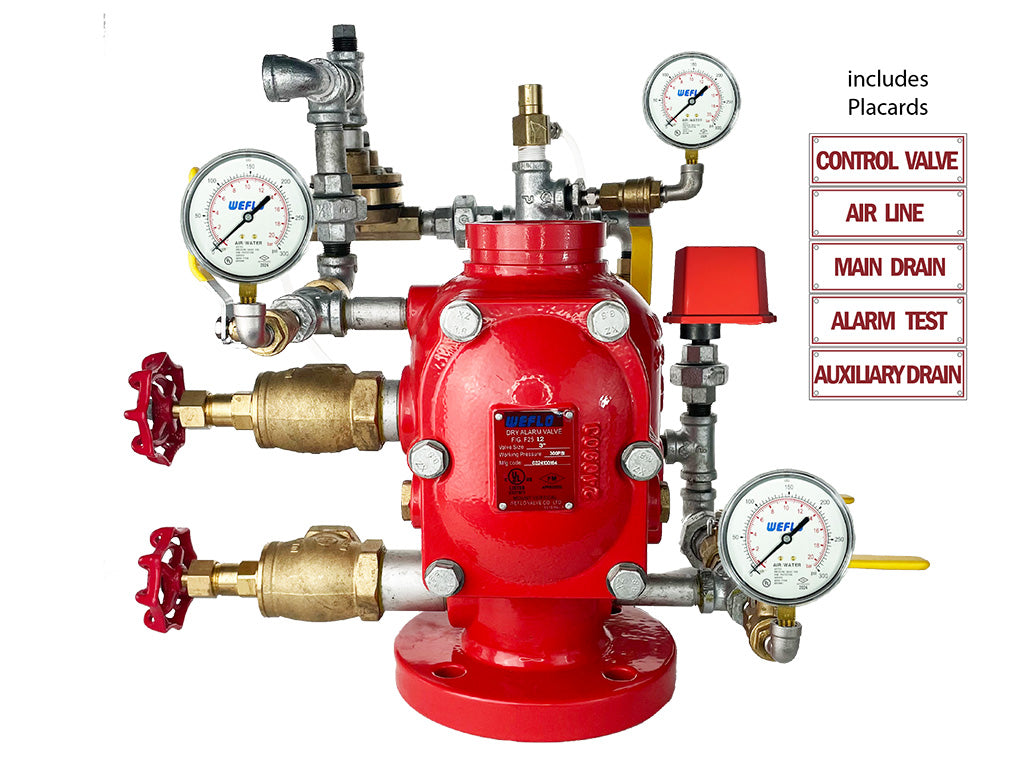

DRY PIPE VALVE

• Multiple End Types for Main Valve:
          F2511: Flange by Flange (FLxFL)

          F2512: Flange by Groove {FLxGR)

          F2522: Groove by Groove (GRxGR)
• Flanged connections are drilled per EN1092 -PN10/16 or ANSI B16.1 Class 125. (Other flange types available upon request)
• Grooved connections are cut in accordance with standard groove specifications for steel pipe.
• Peroxide cured EPDM with fabric diaphragm. The valves and trim as specified by the Standard for the installation of sprinkler systems, ANSI/NFPA 13.
• Latched-Clapper type.
• Dry pipe system valve should be installed vertically orientation.
• For use in dry pipe (automatic sprinkler) fire protection systems.
• Air supervisory Pressure Switches.
• Rated Working Pressure UL/FM: 300 psi CE: 16bar.
• UL/ULC 260 Listed and FM 1020/1021 Approved. CE Certified.
• Fusion Bonded Epoxy Coated Interior and Exterior to AWWAC550 Standard.
• Options: Dry Accelerator, Water Motor Alarm, Alarm Pressure Switch, Drain Connection Kit.

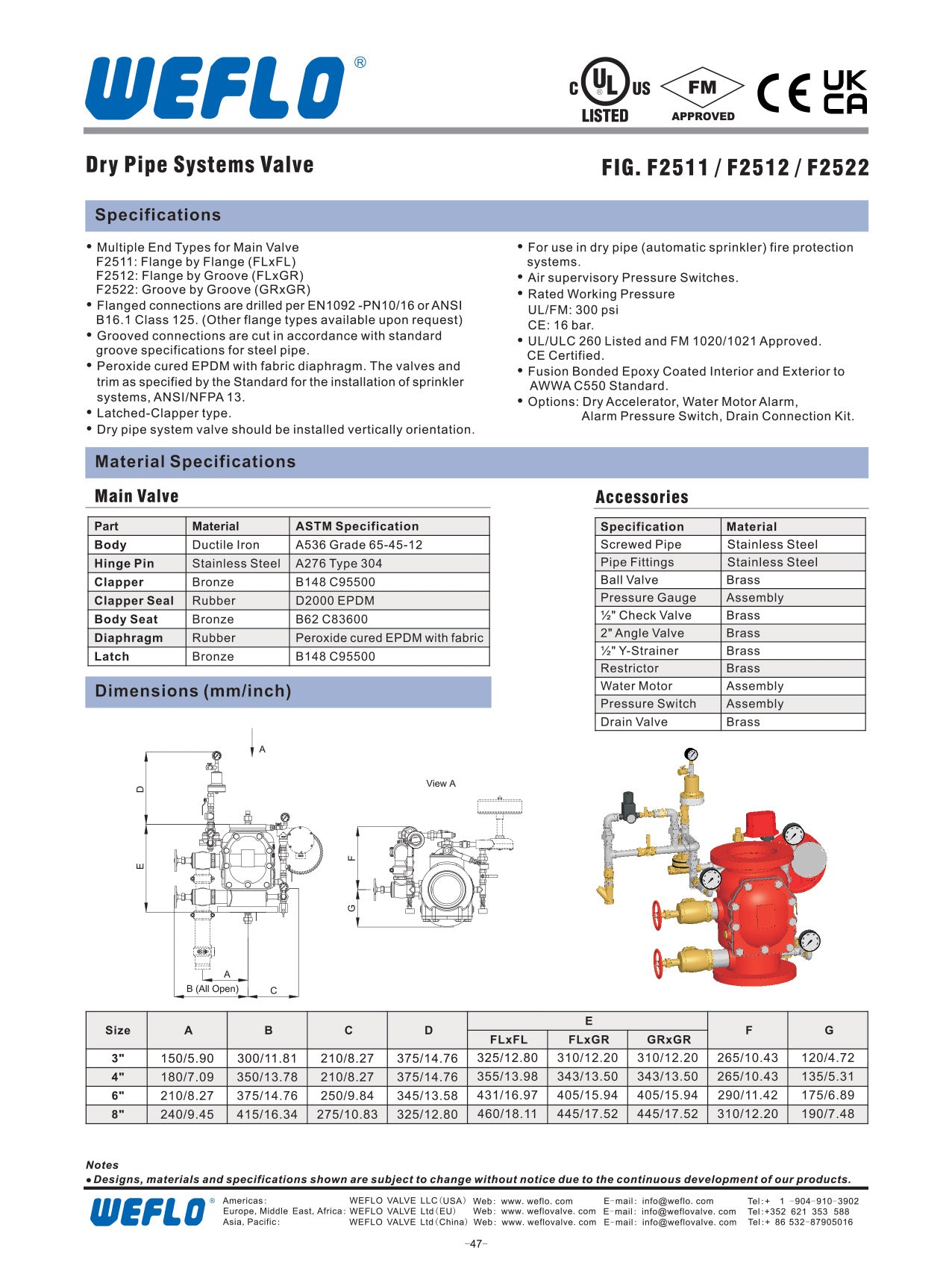

Click here to open a PDF of the manufacturer's Spec Sheet.
