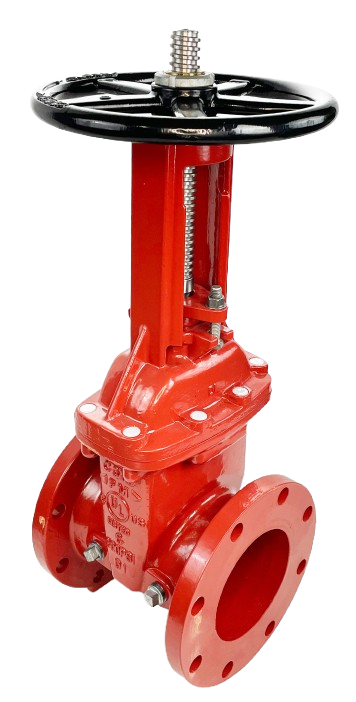

RAIDON (WEFLO) OS&Y GATE VALVE, Flange x Flange, UL/FM

Manufacturer: WEFLO VALVE CO LTD

Brand:  RAIDON Industries Inc

Model:  F0111-300

Specifications:

• Body Material: Ductile Iron ASTM A536, 65-45-12
• Rubber:  EPDM
• Design Standard: AWWA C515, Fire Protection Resilient Seat
• Connection Ends:  Flange x Flange to ASME B16.1 CL 125
• Working Pressure: 300psi
• Temperature Range: 0℃ - 80℃
• Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550
• Size Available: 3" - 8"
• FM Approved / UL Listed

Click here to open a PDF of the manufacturer's Spec Sheet.

This valve features a durable red epoxy finish required for most fire-prevention installations and recognized across NFPA-compliant systems.

Designed specifically for fire prevention systems, this UL/FM certified valve provides reliable flow control for commercial sprinkler and riser applications.
