How to Test and Inspect Your Dry Pipe Valve System?

17 Apr 2025

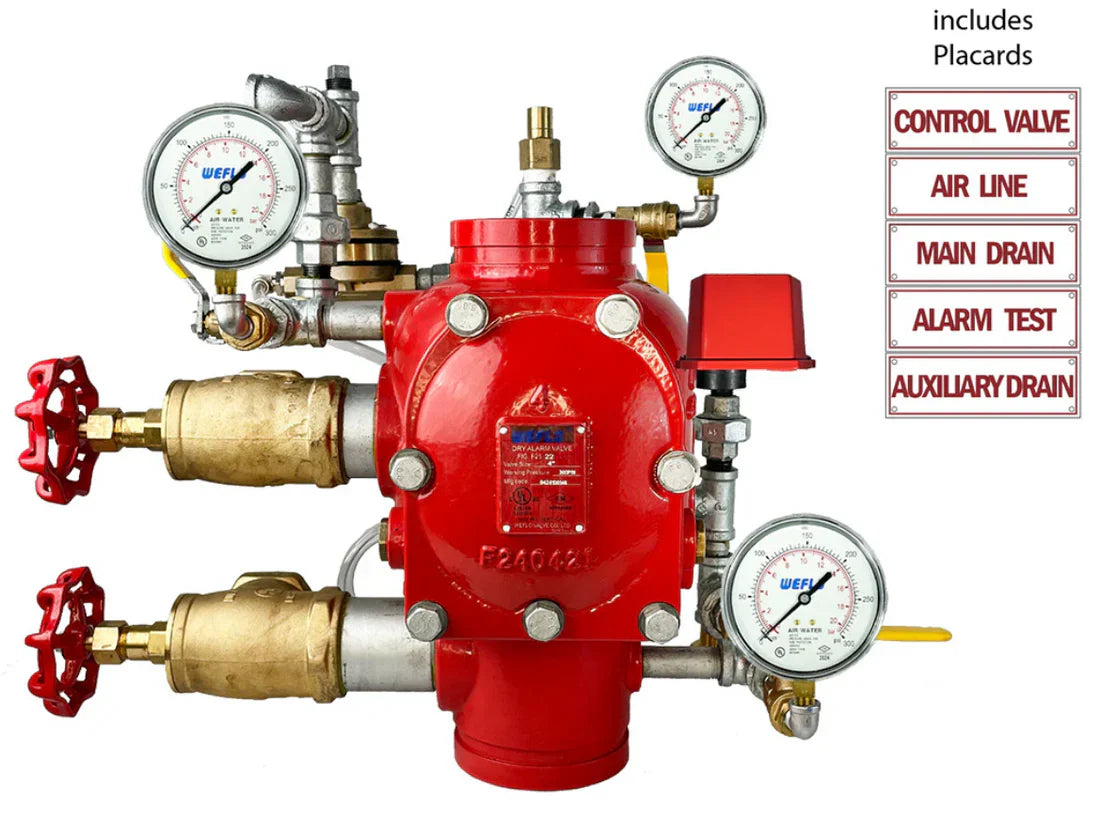

dry pipe valve

Fire protection systems are vital to any building's safety, particularly in regions with freezing temperatures. The dry pipe valve system is crucial to keeping the sprinklers operating during a fire and reducing the possibility of frozen pipes.

Regular testing and inspections of these systems are necessary to maintain reliability and are also required under most fire codes. While you may have a dry valve or a Weflo Drive valve, complete maintenance, inspection, preventive maintenance, and testing of your system will keep its integrity in compliance with code and allow it to operate when needed.

This article will cover the significance of inspections and the appropriate frequency of their execution. It will also guide you through your dry valve system's testing and inspection process.

Why Are Testing and Inspection Crucial in Dry Pipe Valves?

Regular inspections and testing are essential to:

  • Ensure proper valve operation

  • Detect leaks, corrosion, or air pressure issues

  • Continue to follow NFPA 25 and local fire codes.

  • Prevent false trips and delayed responses during emergencies

  • Increases the valve's and system components' lifespan.

Neglecting maintenance could result in system failure during a fire emergency—a risk no facility manager should be willing to take.

How Often Should You Inspect a Dry Pipe Valve?

According to NFPA 25, the standard for inspection, testing, and maintenance of water-based fire protection systems, dry valve systems should be inspected and tested as follows:

– Visual Inspection

  • Monthly: Check air and water pressure gauges.

  • Quarterly: Inspect valve trims and physical condition.

  • Annually, inspect the entire system thoroughly, including alarm devices.

– Functional Testing

  • Annually: Perform a full operational trip test to verify that the valve opens appropriately and water reaches the most remote sprinkler head within an acceptable time frame.

Let’s break down what’s involved in each part of the inspection and testing process.

Step-by-Step: Visual Inspection of a Dry Pipe Valve System

1. Inspect the Valve Assembly

Start by visually examining the dry valve, whether it’s a dry valve or another model. Look for signs of:

  • Corrosion or rust

  • Loose or missing bolts

  • Any physical harm to the trim or valve body

  • Make sure that the valve's nameplate is readable and firmly fastened.

2. Check Air and Water Pressure Gauges

Ensure the gauges for water pressure (below the valve) and air pressure (above the valve) display consistent readings. For most systems, the air pressure should be 10-20 psi higher than the valve's trip point for most systems.

If using a Weflo Drive valve, refer to the manufacturer’s specifications for exact pressure ranges.

3. Verify Valve Position

Ensure the valve is in the proper position. The clapper (or equivalent mechanism) should be seated tightly, and the water supply valve should be open.

Step-by-Step: Annual Testing of Your Dry Pipe Valve System

1. Notify the Monitoring Station and Local Authorities

Before testing, inform the monitoring company and local fire department to avoid triggering false alarms.

2. Prepare the System for Testing

  • Ensure all drain valves are correctly positioned.

  • Check to make sure the nitrogen generator or air compressor is operating properly.

  • Check that the low-pressure alarm is operational.

3. Trip Test the Valve

A complete trip test simulates a fire condition to verify that the valve opens and water flows through the system. Here’s how to do it:

– Open the Test Valve

Use the test valve nearest the end of the system piping or the test connection on the remote inspector. This simulates the release of air that would occur if a sprinkler head were activated.

Monitor the Air Pressure

Watch the air pressure drop steadily. Once it falls below the valve’s trip point, it should open automatically.

Check for Water Flow

After the valve trips, verify that water flows through the system piping and out of the test connection. Time how long it takes for the water to arrive. According to NFPA specifications, standard systems must have water reach the test point in 60 seconds.

– Record and Reset

  • As directed by the manufacturer, reset the dry valve.

  • Close all test and drain valves.

  • Use the nitrogen generator or compressor to restore air pressure.

  • As directed by the manufacturer, reset the dry valve.

  • Check for leaks by reopening the water supply valve.

Common Issues Found During Inspection

During your inspections or tests, you may uncover several common issues:

  • Slow valve trip: This is caused by partially clogged trim piping or low air pressure.

  • Corrosion: Indicates water intrusion or lack of proper drainage.

  • Air compressor failure: Results in low air pressure and false valve trips.

  • Leaky valve: Could be due to worn gaskets or damaged clapper assemblies.

Address any issues immediately. Replacement parts or new assemblies like the weflow dry valve can often be sourced directly from reputable suppliers like ShopNasco.com.

Tips for Maintaining a Weflow Dry Valve or Weflo Drive Valve

– For replacement components, lubrication, and cleaning, adhere to the manufacturer's instructions.

– Keep the area around the air valve clean and dry, free of debris or dust buildup.

– Utilize desiccant air dryers or nitrogen to help reduce moisture in the air supply.

– Obtain annual professional inspections to ensure compliance and identify issues up front.

Final Thoughts

Your dry valve system is the first defense against fire damage, especially when it freezes outside. Regular inspections and tests are not just for compliance; they are about people's and property's safety. You should expect quality and performance if a Weflow dry pipe or Weflo Drive valve is maintained correctly. By following the inspection and testing steps documented above, you will feel comfortable knowing that your system is always prepared for you in a time of need.

Do you need to upgrade or replace parts of your dry pipe system? Visit ShopNasco.com for high-quality valves, parts, and expert support tailored to your fire protection needs.
